Description

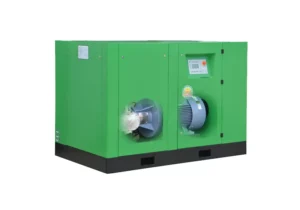

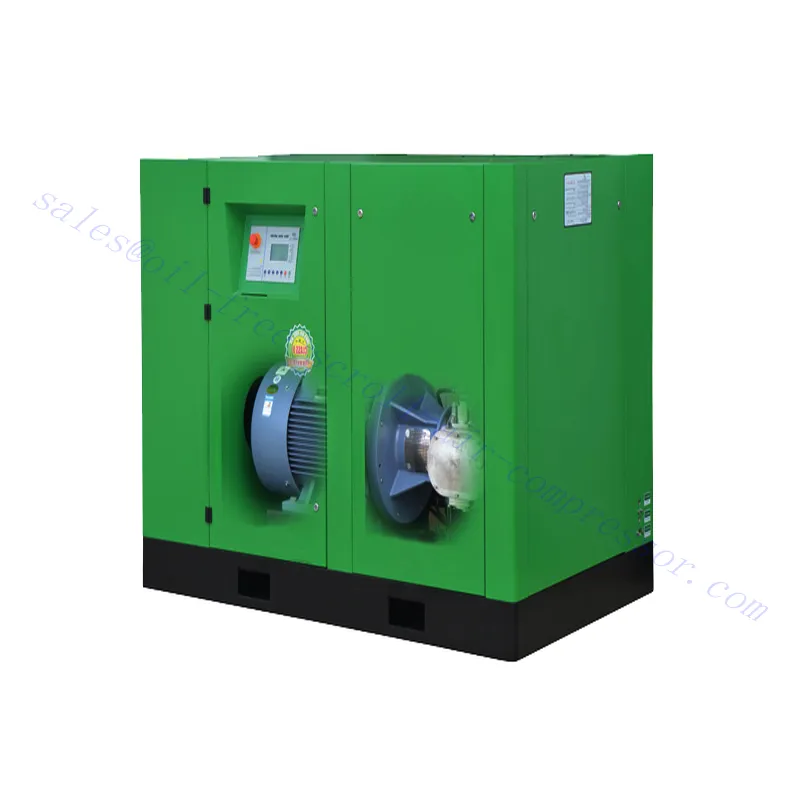

CM/PV Series Oil-Free Scroll Air Compressor
An oil-free scroll air compressor is an air compressor that does not use oil to lubricate its moving parts. This type of compressor is commonly used in applications where oil contamination cannot be accepted, such as food and beverage processing, medical applications, and pharmaceutical manufacturing.
Oil-free scroll air compressors work by using a variety of different technologies, including pistons, screws, and vortices. The piston compressor is the most common type of oil-free scroll air compressor. They use pistons that move up and down in a cylinder to compress air. Screw compressors are similar to piston compressors, but they use two screw screws to compress air. Scroll compressors are the most efficient type of oil-free scroll air compressor. They work by using two spiral-shaped scrolls to compress air.
CM/PV Series Oil-Free Scroll Air Compressor Parameter:
| Model | Ā Work pressure | FAD | Power | Noise | Weight |
Pipe diameters of coolingĀ water inlet |
Cooling fan power | Dimension | Air outlet | |||
| and outlet | ||||||||||||
| MPa | Psi | mĀ³/min | cfm | kW | HP | dB(A) | kg | Ā Water entering32ā | LĆWĆH | |||
| T/h | mm | |||||||||||
| CM08PVF | 0.8 | 116 | 0.45-1.15 | 16-41 | 7.5 | 10 | 58 | 630 | DN25 | 2 | 1550Ć775Ć1445 | 1Źŗ |
| 1 | 145 | 0.41-1.02 | 14-36 | 500 | 1350Ć774Ć1150 | |||||||
| CM11PVF | 0.8 | 116 | 0.62-1.55 | 22-55 | 11 | 15 | 58 | 650 | DN25 | 2.5 | 1550Ć775Ć1445 | 1Źŗ |
| 1 | 145 | 0.53-1.32 | 19-47 | 520 | 1350Ć774Ć1150 | |||||||
| 1.25 | 181 | 0.48-1.02 | 17-36 | |||||||||
| CM15PVF | 0.8 | 116 | 0.96-2.40 | 34-85 | 15 | 20 | 63 | 900 | DN25 | 3.5 | 1900Ć1000Ć1635 | 1Źŗ |
| 1 | 145 | 0.85-2.12 | 30-75 | |||||||||
| 750 | 1680Ć1000Ć1335 | |||||||||||
| 1.25 | 181 | 0.64-1.61 | 23-57 | |||||||||
| CM18PVF | 0.8 | 116 | 1.24-3.10 | 44-109 | 18.5 | 25 | 65 | 970 | DN25 | 4 | 1900Ć1000Ć1635 | 1Źŗ |
| 1 | 145 | 1.05-2.62 | 37-93 | |||||||||
| 820 | 1680Ć1000Ć1335 | |||||||||||
| 1.25 | 181 | 0.85-2.13 | 30-75 | |||||||||
| CM22PVF | 0.8 | 116 | 1.40-3.50 | 49-124 | 22 | 30 | 65 | 1000 | DN25 | 5 | 1900Ć1000Ć1635 | 1Źŗ |
| 1 | 145 | 1.25-3.13 | 44-111 | |||||||||
| 850 | 1680Ć1000Ć1335 | |||||||||||
| 1.25 | 181 | 1.04-2.61 | 37-92 | |||||||||
| CM30PVF | 0.8 | 116 | 2.00-5.00 | 71-177 | 30 | 40 | 66 | 1200 | DN40 | 7 | 1950Ć1050Ć1780 | 1Ā 1/2Źŗ |
| 1 | 145 | 1.68-4.20 | 59-148 | |||||||||
| 1300 | 1900Ć1050Ć1430 | |||||||||||
| 1.25 | 181 | 1.52-3.18 | 54-112 | |||||||||
| CM37PVF | 0.8 | 116 | 2.44-6.10 | 86-215 | 37 | 50 | 67 | 1230 | DN40 | 9 | 1950Ć1050Ć1780 | 1Ā 1/2Źŗ |
| 1 | 145 | 2.09-5.22 | 74-184 | |||||||||
| 1320 | 1900Ć1050Ć1430 | |||||||||||
| 1.25 | 181 | 1.92-4.81 | 68-170 | |||||||||
| CM45PVF | 0.8 | 116 | 3.12-7.80 | 110-275 | 45 | 60 | 68 | 1930 | DN40 | 10 | 3040Ć1280Ć1800 | 2Źŗ |
| 1 | 145 | 2.45-6.13 | 87-216 | |||||||||
| 1430 | 2200Ć1350Ć1530 | |||||||||||
| 1.25 | 181 | 2.26-5.65 | 80-200 | |||||||||
| CM55PVF | 0.8 | 116 | 3.84-9.60 | 136-339 | 55 | 75 | 70 | 2050 | DN40 | 12 | 3040Ć1280Ć1800 | 2Źŗ |
| 1 | 145 | 3.44-8.60 | 121-304 | |||||||||
| 1550 | 2200Ć1350Ć1530 | |||||||||||
| 1.25 | 181 | 2.97-7.42 | 105-262 | |||||||||
| CM75PVF | 0.8 | 116 | 5.16-12.90 | 182-455 | 75 | 100 | 73 | 2450 | DN40 | 18 | 3040Ć1280Ć1800 | 2Źŗ |
| 1 | 145 | 4.57-11.42 | 161-403 | |||||||||
| 1790 | 2200Ć1350Ć1530 | |||||||||||
| 1.25 | 181 | 3.93-9.83 | 139-347 | |||||||||
| CM90PV | 0.8 | 116 | 6.52-16.30 | 230-576 | 90 | 125 | 73 | 2160 | DN40 | 20 | 2500Ć1400Ć1580 | 2Ā 1/2Źŗ |
| 1 | 145 | 5.81-14.52 | 205-513 | |||||||||
| 1.25 | 181 | 4.92-12.30 | 174-434 | |||||||||
| CM110PV | 0.8 | 116 | 7.76-19.40 | 274-685 | 110 | 150 | 78 | 2270 | DN40 | 24 | 2500Ć1400Ć1580 | 2Ā 1/2Źŗ |
| 1 | 145 | 6.76-16.90 | 239-597 | |||||||||
| 1.25 | 181 | 6.04-15.10 | 213-533 | |||||||||
| CM132PV | 0.8 | 116 | 8.88-22.21 | 314-784 | 132 | 180 | 78 | 2350 | DN50 | 30 | 2500Ć1400Ć1580 | 2Ā 1/2Źŗ |
| 1 | 145 | 8.15-20.38 | 288-720 | |||||||||
| 1.25 | 181 | 7.31-18.29 | 258-646 | |||||||||
| CM160PV | 0.8 | 116 | 11.54-28.85 | 407-1019 | 160 | 220 | 78 | 3720 | DN80 | 35 | 3100Ć1700Ć2090 | DN100 |
| 1 | 145 | 9.81-24.52 | 346-866 | |||||||||
| 1.25 | 181 | 8.87-22.17 | 313-783 | |||||||||
| CM200PV | 0.8 | 116 | 14.65-36.63 | 517-1293 | 200 | 270 | 78 | 3750 | DN80 | 43 | 3100Ć1700Ć2090 | DN100 |
| 1 | 145 | 13.10-32.70 | 463-1155 | |||||||||
| 1.25 | 181 | 11.09-27.72 | 392-979 | |||||||||
| CM250PV | 0.8 | 116 | 17.15-42.88 | 606-1514 | 250 | 340 | 78 | 3900 | DN80 | 53 | 3100Ć1700Ć2090 | DN100 |
| 1 | 145 | 15.60-39.00 | 551-1377 | |||||||||
| 1.25 | 181 | 13.87-34.64 | 490-1223 | |||||||||
| CM320PV | 0.8 | 116 | 23.64-59.10 | 835-2087 | 320 | 430 | 80 | 4850 | DN100 | 60 | 3600Ć2800Ć2000 | DN125 |
| 1 | 145 | 21.40-53.50 | 756-1889 | |||||||||
| 1.25 | 181 | 19.30-48.25 | 681-1704 | |||||||||
CM/PV Series Oil-Free Scroll Air Compressor Feature:
The new model is 15%-20% more energy efficient than piston air compressors. After the piston ring and cylinder body wear, it saves 30%-40% more power than the piston air compressor. Two years of saving is equivalent to the cost of buying a machine.
Box design, no vibration, low noise, small volume.
Fewer consumables, low cost.
Environmental protection, oil-free design, ISO08573-1 oil-free certification.
Isothermal compression, low exhaust temperature, and low water content of compressed air.
We are one of the best oil-free scrollĀ air compressorĀ suppliers. We have exported our products to clients worldwide and earned a good reputation because of our superior product quality and after-sales service. We welcome customers at home and abroad to contact us to negotiate business, exchange information, andĀ cooperate with us!
