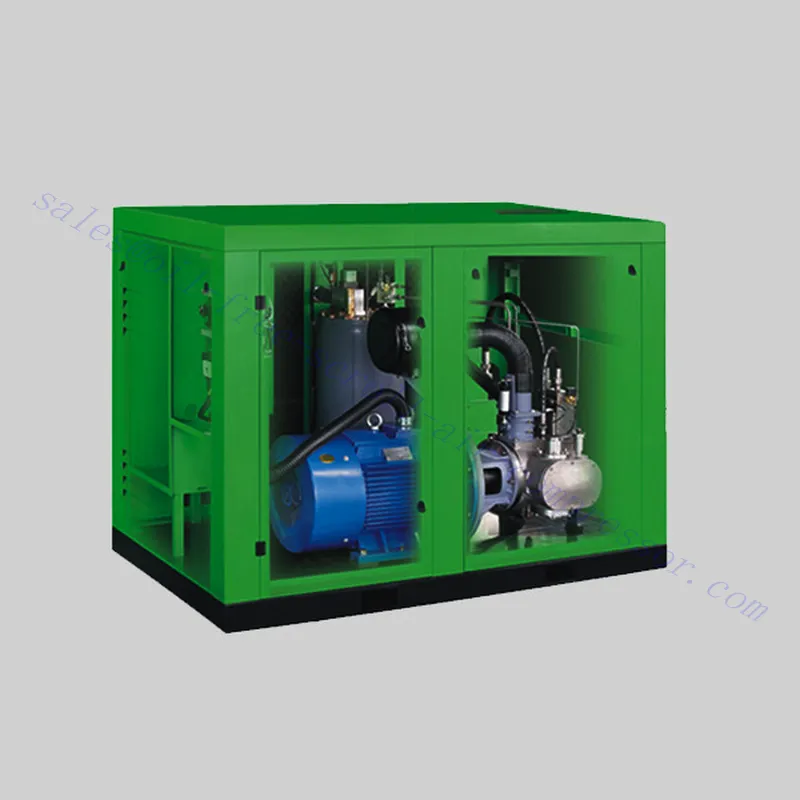

CM/D Series Oil-Free Scroll Air Compressor

Category: Oil-Free Scroll Air Compressor Tag: oil-free scroll air compressor

Description

Description

CM/D Series Oil-Free Scroll Air Compressor

An oil-free scroll air compressor is an air compressor that does not use oil to lubricate its moving parts. This type of compressor is commonly used in applications where oil contamination cannot be accepted, such as food and beverage processing, medical applications, and pharmaceutical manufacturing.

Oil-free scroll air compressors work by using a variety of different technologies, including pistons, screws, and vortices. The piston compressor is the most common type of oil-free scroll air compressor. They use pistons that move up and down in a cylinder to compress air. Screw compressors are similar to piston compressors, but they use two screw screws to compress air. Scroll compressors are the most efficient type of oil-free scroll air compressor. They work by using two spiral-shaped scrolls to compress air.

CM/D Series Oil-Free Scroll Air Compressor Parameters:

Fixed Speed Series

Model	Work pressure	FAD		Power	Air Supply temperature	Noise	Weight	Pipe diameters of cooling water inlet and outlet	Cooling fan Power	Dimension	Air outlet
	Work pressure	FAD		Power	Air Supply temperature	Noise	Weight		Water entering32℃	L×W×H
	MPa	M³/min	cfm	kW	℃	dB(A)	kg		T/h	mm
CM45D	0.12～0.25	13.80	487	45	≤45	70	1720	1 1/2ʺ	12	2200×1350×1530	DN65
CM55D	0.25～0.40	13.60	480	55		70	1750	1 1/2ʺ	18
CM75D	0.25~ 0. 40	20.1	710	75		72	2300	2 1/2″	20
CM132D	0.12～0.25	43.00	1518	132		78	4380	3ʺ	30	3100×1700×2090	DN125
CM160D	0.25～0.40	42.88	1514	160		78	4500	3ʺ	35	3100×1700×2090	DN125

VSD Series

Model	Work pressure	FAD		Power	Air Supply temperature	Noise	Weight	Pipe diameters of Cooling water inlet and outlet	Cooling fan Power	Dimension	Air outlet
	Work pressure	FAD		Power	Air Supply temperature	Noise	Weight		Water entering 32℃	L×W×H
	MPa	M³/min	cfm	kW	℃	dB(A)	kg		T/h	mm
CM45DV	0.12~0.25	5.50~13.80	194-487	45	≤45	70	1720	1 1/2ʺ	12	2200×1350×1530	DN65
CM55DV	0.25~0.40	5.40~13.60	191-480	55		70	1750	1 1/2ʺ	18
CM75DV	0.25~0.40	8.04~20.1	282-710	75		72	2300	2 1/2″	20
CM132DV	0.12~0.25	17.20~43.00	607-1518	132		78	4380	3ʺ	30	3100×1700×2090	DN125
CM160DV	0.25~0.40	17.10~42.88	604-1514	160		78	4500	3ʺ	35	3100×1700×2090	DN125

CM/D Series Water Lubrication Compressor Feature:

Energy Saving: Energy saving more than 15% compared with dry oil-free water lubrication compressors.

Environmental protection: do not use any lubricating oil to avoid environmental pollution.

Reliability: No oil is guaranteed.

We are one of the best oil-free scroll air compressor suppliers. We have exported our products to clients worldwide and earned a good reputation because of our superior product quality and after-sales service. We welcome customers at home and abroad to contact us to negotiate business, exchange information, and cooperate with us!
